ST9824-IPC 4CH IPC 6PIN MNVR

*CHIP:Hisilicon
*System:Linux
*Compression Format: H.264/H.265
*Camera input Resolution: 4CH IPC camera input
*Audio input:4CH M12 Aviation head
*Audio output:1CH M12 Aviation head
*Playback: 4 CH separate Playback
*Storage:Max 1TB SD card *1 & 4T 2.5inch HDD*1(Not include)
*CMS Server:CMSV6 Platform
*Consumption:Normal less than 5W
*Power Input:+12V~+36V

  • Overview
  • Related Products

Item

Specification

Operating OS

Embedded Linux system Hisilicon solution

System language

Simplified/Traditional Chinese, English, Russian, Korean (other languages can be customized)

Video compression format

H.264 compact model

OSD

Character superposition function, support time, date, channel name, vehicle ID and other information superposition

GUI

Graph OSD

System parameters can be set by external display and remote control

Video and video

System

Video input

4CH 1080P downward compatibility

Video output

VGA x1;CVBS x1(RCA+M12 Aviation head1.0Vp-p 75Ω

Preview function

Single-channel, 2/4 picture splicing preview, support manual/event trigger full screen display function

Video resolution

1920x1080

Video quality

Normal, standard (default), HD, Ultra HD 4 optional

Video mode

Automatic power-on recording

Audio

Audio input

4CH M12 Aviation head

Audio output

1CH(RCA+M12 Aviation head

compressed format

G.711U compression format,Rate 8KB/s

Alarm input

4 CH IO Alarm input,Pulse speed input; With alarm linkage function

Alarm output

2 switch quantity output, linkage sound and light alarm, oil cut-off equipment, etc

Optional function

communication interface

1CH RS232 or RS485 port

wireless transmission

Support built-in 4G wireless transmission function, TDD-LTE, FDD-LTE

Compatible with 3G networks: WCDMA, CDMA2000,TD-SCDMA以及GPRS, EDGE

Position

Support built-in GPS/Beidou /GLONASS module;

Storage

SD Card

Max support 1TB

Upgrade ways

Support U disk upgrade, TF card upgrade, FTP remote automatic upgrade

Storage ways

Proprietary raw disk Preallocated storage (industry advanced storage)

USB

Connect USB flash drive backup video and upgrade or mouse

Replay

Video research

You can search video data by recording time and recording method

Playback

Supports four simultaneous playback, pause, fast forward, and fast rewind

Power supply and power consumption

Power management

Adaptive wide power input, reverse protection, power loss/overvoltage/overcurrent protection, short circuit protection;

Support delay shutdown function.

Input voltage

DC:+12V ~ +36V(Greater than 42V automatic shutdown protection)

Output voltage

+12V@2.5A+5V@0.5A

Power consumption

Normal working condition < 5W (excluding camera and display)

work environment

Temperature

-30 ~ +70

Humidity

10% ~ 80%

Safety management

Password access

User password and administrator password are managed at two levels

Others

Size

146x130 x42mm

N.W

0.5KG

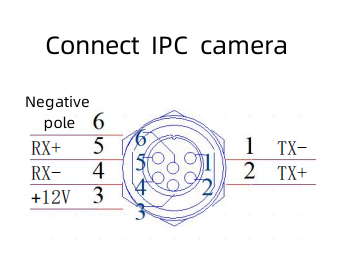

  • IPC Camera connector_副本.png

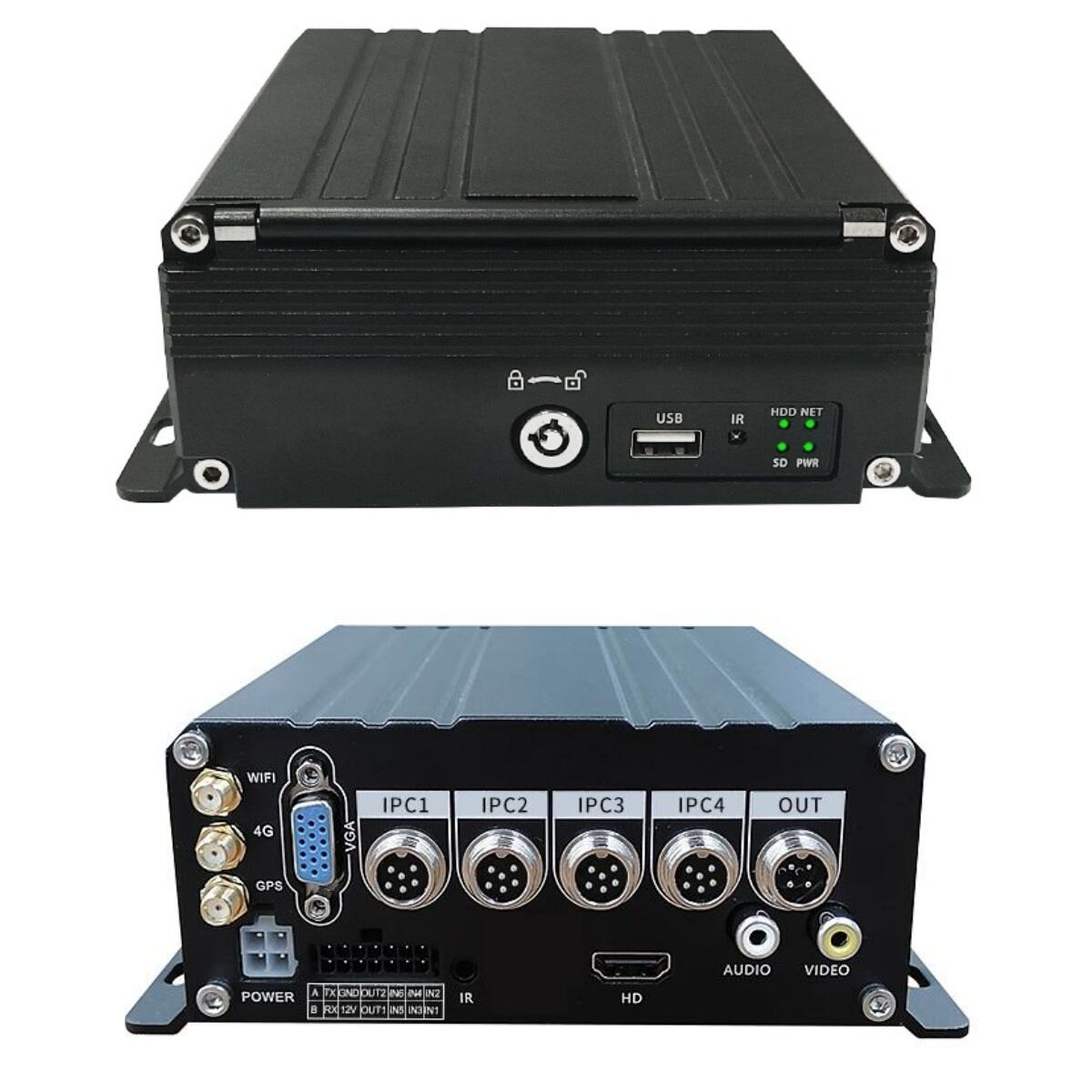

  • ST9824-IPC_.jpg
